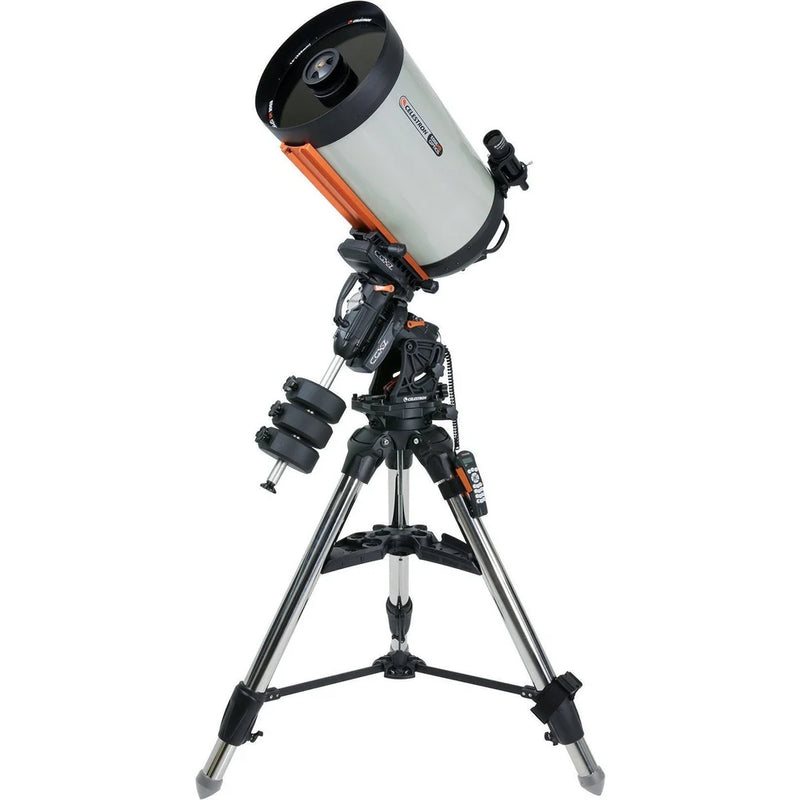

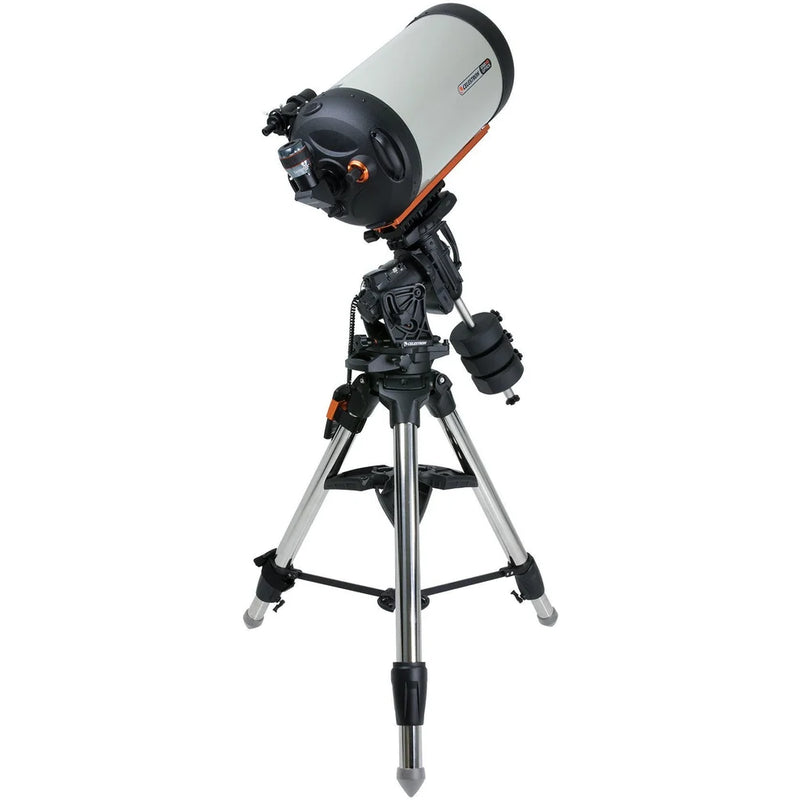

Celestron CGX-L 1400 EdgeHD Telescope

SKU CGX-L 1400 EdgeHD
Save 23% Save 23%
Original price $12,998.95 USD
Original price $12,998.95 USD - Original price $12,998.95 USD
Original price $12,998.95 USD
Current price $9,999.00 USD
$9,999.00 USD - $9,999.00 USD
Current price $9,999.00 USD

Celestron’s CGX-L Computerized Equatorial Mount is the latest addition to its fully computerized equatorial mount lineup. Designed to support Celestron’s largest optical tubes with ease, the CGX-L is ideal for backyard observatories and remote imagers seeking an exceptional load capacity-to-weight ratio, compact design, and innovative features capable of supporting large telescopes, advanced imaging setups, and the latest wireless technology accessories. The CGX-L features larger 144mm-diameter worm wheels, providing smoother operation and more precise drive performance when handling heavier loads. Its extended 270mm dovetail saddle offers enhanced support for larger optical tubes, while remote-operation-friendly features such as home and limit optical sensors make the mount well suited for automated and remotely controlled setups. Additional improvements include easier polar alignment adjustments and enhanced cable management for a cleaner, more organized setup. Celestron has also incorporated mechanical and ergonomic refinements throughout the mount, making it sturdier, easier to operate, and more convenient to transport.

Features

  • 14" EdgeHD Optics
  • Celestron premium StarBright XLT coatings
  • CGX-L computerized Equatorial mount
  • Heavy Duty stainless steel tripod adjustable from 38 - 55
  • 9x50 finderscope with quick release bracket to help accurately find objects
  • 2" Star diagonal provides more comfortable viewing position when observing objects that are high in the sky


Standard shipping

Estimated delivery time: 7-10 days, unless otherwise  noted

Specifications

Optical Tube Info:

Optical Design: EdgeHD
Aperture: 356mm (14")
Focal Length: 3910mm (154")
Focal Ratio: f/10
Focal Length of Eyepiece 1: 23mm (.91")
Magnification of Eyepiece 1: 170x
Finderscope: 9x50
Star Diagonal: 2" with 1.25" adapter
Optical Tube: Aluminum
Highest Useful Magnification: 840x
Lowest Useful Magnification: 51x
Limiting Stellar Magnitude: 15.3
Resolution (Rayleigh): 0.39 arc seconds
Resolution (Dawes): 0.33 arc seconds
Light Gathering Power (Compared to human eye): 2579x
Secondary Mirror Obstruction: 114mm (4.5")
Secondary Mirror Obstruction by Diameter: 32%
Secondary Mirror Obstruction by Area: 10%
Optical Coatings: StarBright XLT
Optical Tube Length: 787mm (31")
Optical Tube Diameter: 400.5mm (15.77")
Optical Tube Weight: 46 lbs (21 kg)
Dovetail: CGE Dovetail Bar

Mount Info:

Mount Type: Computerized Equatorial
Instrument load capacity: 75 lbs (34 kg)
Height adjustment range (includes mount and tripod): 1524mm - 1955.8mm (60" - 77")
Tripod adjustment range (tripod only): 838.2mm - 1397mm (33" - 55")
Equatorial height alone: 609.6mm (24")
Tripod Leg Diameter: 69.85mm (2.75") Steel tripod with graduated markings on lower section
Latitude adjustment range: 3° - 65°
Mount Head Weight: 52.6 lbs (23.8 kg)
Accessory Tray: Yes
Tripod Weight: 46.2 lbs (21 kg)
Weight of Counterweights: 3 x 22 lbs
Slew Speeds: 9 slew speeds - max speed 3°/second
Tracking Rates: Sidereal, Solar and Lunar
Tracking Modes: EQ North and EQ South
GPS: N/A
Dovetail Compatibility: Dual saddle plates (CG-5 and CGE saddle)
Number of Auxiliary Ports: 4 AUX Ports (Hand Control can use any AUX Port, 2 are located near dovetail saddle)
Autoguide Port: Yes, 2 Ports (one is located near the dovetail saddle)
USB Port: Yes, input for Mount and Hand Control
Power Requirements: 12V DC, 3 amps
Motor Drive: DC servo motors
Alignment Procedures: 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align
Periodic Error Correction: Yes
Computerized Hand Control: Double line, 16 character Liquid Crystal Display; 19 fiber optic backlit LED buttons, USB 2.0 Port for PC connection
NexStar+ Database: 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Software: CPWI Telescope Control Software, Celestron Starry Night Special Edition Software, and SkyPortal App

Included Items:

CGX-L Equatorial Head
CGX-L Tripod
Accessory Tray
3 x 22 lbs counterweights
NexStar+ Hand Control
DC Power Cable (item# 18769)
8mm Allen wrench (contained in rear carry handle)
